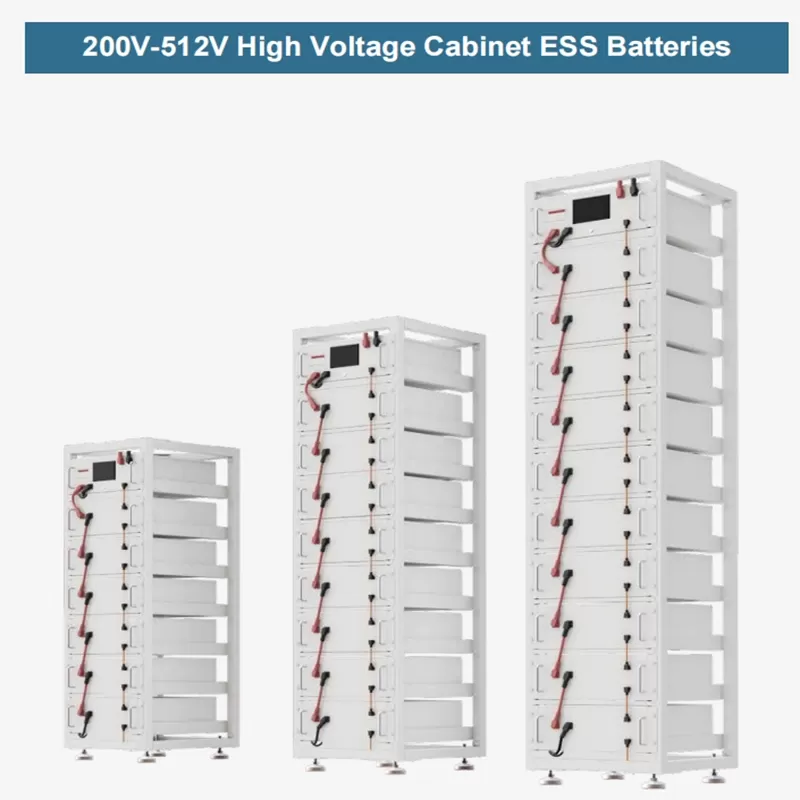

6 Module quantity 200V-512V High Voltage Cabinet ESS Batteries

Features

Higher Cycle:
Longer Life:Grade A cells, high charging and discharging efficiency, more than 6000 cycles

LCD Display:
Monitor the operating status data of ESS system in real time

BMS Intelligent Protection:
Overcharge, overcurrent, overdischarge,overvoltage protection.

Convenient Installation：

Quick installation with standard 19-inch module, easy for installation

Modular Design:
Modular design, parallel expansion, flexible choice of voltage and capacity

RS485/CAN Communication:
it supports RS485 and CAN communication at the same time

Inquire Now Next Product

Parameters

Product Model:HVM96S100BL-U

Number Of Modules:6

Energy Capacity (Ah):100

Standard Voltage (V):307.2

Rated Energy (kWh):30.72

Product Dimensions (L x W x Hmm):548x584x1500

Net weight (kg):340

Standard Charge Current (A)：20

Maximum Discharge Current (A)：100

IP Protection：21

Battery Type:LFP

Nominal Voltage (v):51.2

Operating Voltage Range (v)：42~58.4

Communication：CAN/RS485

Installation：Cabinet holding

Operating Temperature：Charging: 0~60°C;Discharge:-10~60°C

Application Scenario and Precautions

High-voltage cabinet batteries can be stacked,and the main use areas are as follows:Standby power，Home energy storage，Machine shop，Remote Monitoring，Power control，Solar Storage

Precautions：

Do not short circuit, crush or disassemble

Heating or incineration is prohibited

In order to minimize self-discharge during storage for long time, please disconnect the battery connection of the high voltage control box from the DC connection harness
