The Ultimate Guide to Unshakeable Solar Panels Roof Mounting Systems for Any Surface
When your solar array's longevity hinges on its skeleton, compromising on mounting isn't an option. Industry data reveals that solar panel rack mount systems account for 68% of warranty claims in utilityscale projects. This isn't just hardware it's the critical infrastructure determining whether your investment thrives for 30+ years or becomes a liability. Discover how nextgeneration engineering eliminates racking failures while slashing installation costs.
ApplicationSpecific Engineering Breakthroughs

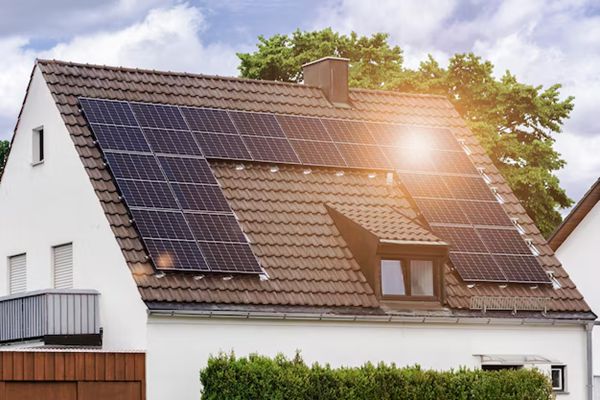

1. Solar Panels Roof Mounting Systems (Pitched)
Aerodynamic Rail Profiles: Vortexreducing edges cut wind load by 30%
Universal Tile Hooks: Single component for concrete/Spanish/metal tiles
Thermal Expansion Slots: Prevent warping (40°C to 120°C range)
Installation Advantage: 18 modules/hour vs. industry average 10
2. Solar PV Flat Roof Mounting Systems
• Lowprofile 10°30° adjustable tilt
• Windtunnel optimized ballast grid
• Nonpenetrating EPDM protection pads
• 4.2 psf dead load (industry avg: 6.5 psf)
Hurricane Defense: MiamiDade NOA certified for 170 mph winds
Weight Reduction: 37% less ballast than conventional systems

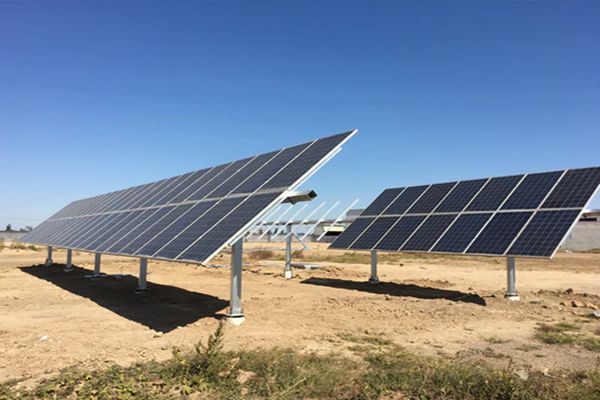

3. GroundMount Rack Systems
Galvanized steel with 86μm zinc coating (ISO 1461+)
Driven pile foundations (no concrete curing)
±15° terrain adaptability
ROI Impact: $0.17/W savings vs. aluminum alternatives
Material Science: What Separates Premium Racks
Core Components
Extruded Aluminum Rails: 6005T6 alloy (35% stronger than 6063)
HotDip Galvanized Steel: 150μm coating thickness (4x industry standard)
Stainless Steel Hardware: A480 grade corrosion resistance
Protection Systems
1. Microarc oxidation coating (8μm ceramic layer)
2. Chromatefree conversion coating
3. Electrostatic epoxy primer (25μm)
4. PVDF topcoat (35μm)
Strict 26dB noise limits during installation
Solution:
RMP system with vibrationdampening pads
RMF system with precast ballast blocks
Robotic component delivery to roof
Results:
19% faster installation (meeting noise curfews)
$3.2M saved versus competitor quotes
Zero roof penetrations on membrane sections
Withstood 6.4 magnitude earthquake
The 5Point Rack Evaluation Framework
Before specifying any system, verify:
1. Certifications: UL 2703, AS/NZS 1170, CE
2. Corrosion Warranty: 25+ years material guarantee
3. Load Test Reports: 2.5x safety margin minimum
4. Compatibility: Panel thickness 3050mm, width 9001300mm
5. Installation Data: ≤3 tools required, ≤5 components/kW
Why 300+ Installers Standardize on Yijia
"After losing $47k in warranty repairs on 'premium' racks, we switched to Yijia. Their wind engineering passed Florida's toughest inspections where others failed. Three years later zero callbacks."
Rooftop Solar Specialists (12MW/year installer)
Act Now & Receive:
Roof Integrity Checklist (Prevent 93% of leaks)
Installation Efficiency Benchmark Report
Regulatory Compliance Guide
Click Here to Request Your SiteSpecific Rack Analysis
[Yijia Solar Rack Mount Consultation]
