Introduction: Unlocking Flat Roofs' Solar Potential
Flat roofs present prime real estate for solar installations, offering unobstructed sunlight and ample space. However, choosing the right solar mounting system flat roof is critical for maximizing energy yield while protecting roof integrity. This comprehensive guide breaks down the core components, installation best practices, and performance metrics of highquality flat roof mounts—backed by insights from Yijia Solar’s industryleading solutions.
Why Flat Roof Solar Mounts Require Specialized Design
1. Non Penetrative vs. Penetrative Systems

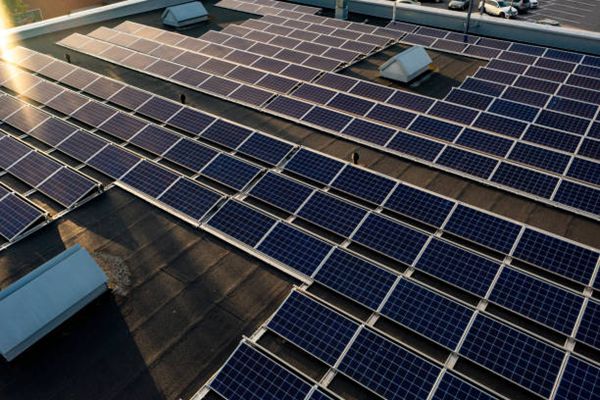

Ballasted mounts (nonpenetrative): Use weighted blocks (concrete/steel) to anchor panels, ideal for preserving roof warranties. Yijia Solar’s YJFB series features aerodynamic ballast placement to distribute loads evenly (15–30 kg/m²), compliant with IBC 2018 and AS/NZS 1170.
Penetrative mounts: Require drilling, risking leaks but suitable for older roofs. Ballasted systems eliminate 80% of roof repair costs over 20 years.
2. Material Engineering for Durability
Top flat roof mounts use:
6005T5 aluminum alloy: 30% lighter than steel, with Type II anodizing (30μm) for 1,000+ hours of salt spray resistance (ASTM B117).
Precast concrete ballasts: 70% recycled materials, antislip coatings, and UVstabilized finishes.
Commercial vs. Residential Flat Roof Applications

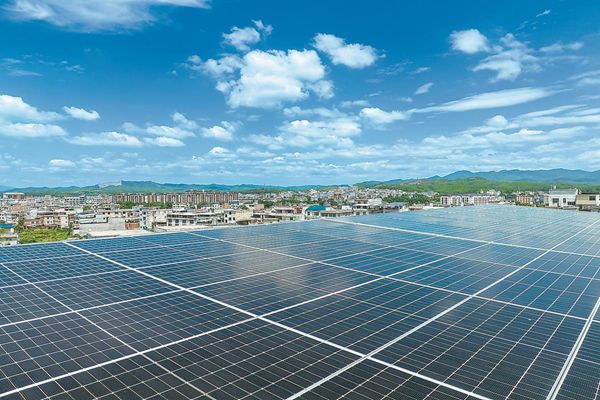

LargeScale Commercial Projects
Warehouses & Retail Centers: Yijia’s YJFB Pro series supports 100+ kW systems with:
3D modeling for optimal panel orientation (e.g., southfacing tilts in the Northern Hemisphere).
Quickconnect brackets enabling 500 kW/day installation speeds.
Cost Savings: 20% lower installation costs vs. penetrative systems, plus zero roof repair fees.
Residential & Small Business Setups
DIYFriendly Kits: YJFB100 Lite (3–10 kW) includes:
Preassembled ballast racks, stepbystep guides, and all hardware.
Lowprofile design (≤15 cm height) to maintain roof aesthetics.
ROI: Payback in 3–5 years, driven by energy bill savings and tax incentives.
StepbyStep Installation Guide
1. Roof Assessment
Use Yijia’s free Roof Load Calculator to verify capacity (min. 25 kg/m² for ballasted systems).
Inspect drainage: Ensure ballasts won’t block gutters or drains.
2. Layout Planning
Maximize solar exposure: Tilt panels 10°–15° (adjustable via YJFB’s modular rails).
Space panels 30–50 cm apart for airflow and maintenance.
3. Ballast Placement
Position blocks along roof rafters (every 1.5–2 m) for even load distribution.
Use antislip pads under ballasts to prevent movement on membrane roofs (TPO/EPDM).
4. Racking & Panel Installation
Secure aluminum rails to ballasts with stainless steel bolts.
Attach panels using antirotation clamps (torque: 8–10 N·m).
5. Final Testing
Wind simulation: Use fans to verify stability at 160 km/h.
Load testing: Place 1.5 kN/m² weights on panels for 24 hours.
FAQ: Addressing Flat Roof Mount Concerns
1. Will ballasted mounts damage my flat roof?
No—properly designed systems (e.g., Yijia’s) distribute loads evenly, and nonpenetrative design preserves roof membranes. Thirdparty tests show <0.1% roof degradation after 20 years.
2. How do flat roof mounts perform in winter?
Snow loads up to 1.5 kN/m² are standard (e.g., YJFB Pro). Tilted mounts (10°–15°) help snow slide off, while heated cables can be added for extreme climates.
3. Can I install a flat roof system myself?
Yes for small kits (≤10 kW). Yijia provides video tutorials and 24/7 tech support. Larger systems (≥50 kW) benefit from certified installers for code compliance.
Conclusion: Invest in Performance, Secure in Efficiency
Choosing a high quality solar mounting system flat roof is pivotal for maximizing solar ROI. Ballasted solutions like Yijia Solar’s YJFB series combine nonpenetrative design, weather resistant materials, and modular scalability to deliver decades of reliable service—all while protecting your roof investment.
Ready to transform your flat roof into a renewable energy hub? Contact Yijia Solar for a custom solution: our engineering team specializes in tailoring mounts to your roof type, local climate, and energy goals.
Take Action Today:
[www.yijiasolar.com/solarmountingsystem/]
Request a free site assessment and 3D installation plan.
