Understanding Your Flat Roof Solar Mounting Options
While flat roofs offer excellent solar potential, mounting panels requires specialized techniques. Choosing the right system is critical for performance, roof integrity, and longevity. Here are the primary methods:

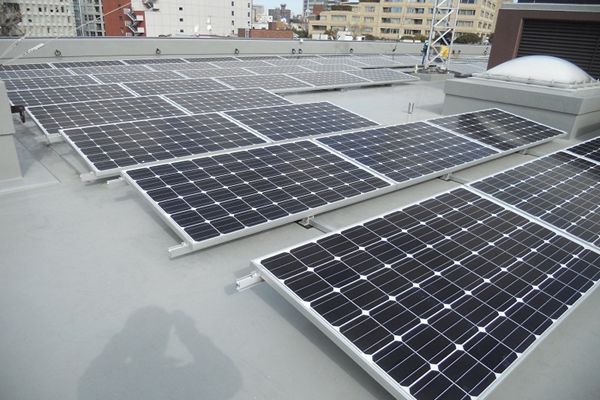

1. Ballasted Mounting Systems: The most popular non-penetrating solution. Uses weighted blocks (concrete or composite) to hold the mounting structure and panels securely in place. Ideal for roofs with adequate load capacity where avoiding penetrations is paramount.
Pros: No roof penetrations, preserving waterproofing; generally easier installation; suitable for various roof types.
Cons: Requires significant dead load capacity; wind uplift calculations are crucial; may need perimeter restraint.
Featured Product: [YiJia Solar Ballasted Flat Roof System]- Engineered for optimal weight distribution and wind resistance, featuring adjustable tilt angles (typically 5°-15°) for enhanced energy yield.
2. Mechanically Attached (Penetrating) Systems: Secures the mounting rails directly to the roof structure using anchors and bolts that penetrate the roofing membrane. Requires meticulous waterproofing.
Pros: Extremely secure, especially in high-wind regions; lower profile; less weight added to the roof structure.
Cons: Requires penetrating the roof membrane, demanding expert flashing and sealing to prevent leaks; more complex installation.
3. Hybrid Systems: Combines elements of ballast and strategic mechanical attachments, often used for taller tilt angles or in very high wind zones to reduce the required ballast weight.
Pros: Enhanced security without maximum ballast load; flexibility.
Cons: Still requires some penetrations; design complexity.
Key Considerations for a Successful Flat Roof Solar Installation
Roofing Material & Condition: Assess the type (EPDM, TPO, PVC, Built-up, Metal) and condition of your roof membrane. It must be in good shape and have sufficient lifespan remaining (ideally 15-25+ years). Ballasted systems are gentler on membranes.
Structural Load Capacity: CRITICAL. A structural engineer must determine if your roof can support the added weight of the panels, mounting system (especially ballast), snow load, and wind uplift forces. Never proceed without this assessment.
Tilt Angle Optimization: While flat roofs are "flat," panels are mounted at an angle (5°-15° is common). This tilt:
Significantly improves energy production (especially in winter) vs. laying panels flat.
Aids self-cleaning from rain/snow.
Affects spacing needs to prevent shading.
Wind Uplift Resistance: Flat roofs are particularly susceptible. The mounting system must be engineered to withstand local wind speeds. Ballasted systems rely on weight and design, while attached systems rely on anchor strength.
Waterproofing Integrity: The #1 concern with penetrations. Flashing kits integrated with the mounting system (like YiJia's) are essential to create a watertight seal around any penetrations. For ballasted systems, ensure feet don't damage the membrane.
Spacing & Racking Layout: Panels need to be spaced to prevent shading on adjacent rows as the sun moves. This affects how many panels fit. Racking must be designed for optimal row placement and maintenance access.
Local Building Codes & Permits: Compliance with local regulations (wind, snow, seismic, electrical, fire setbacks) and obtaining permits is mandatory.
The Installation Process: A Simplified Overview
1. Professional Assessment & Engineering: Roof inspection, structural analysis, shading analysis, system design, and permitting. This is not DIY.
2. Material Delivery: Mounting system components (rails, feet, clamps, ballast blocks or attachment hardware, flashing), panels, inverters, wiring.
3. Roofing Protection: Use walkway pads to protect the membrane during installation.
4. Layout & Marking: Precisely mark locations for mounting feet/rails based on the design plan, ensuring proper spacing and setbacks.
5. Foot Placement/Attachment:
Ballasted: Position feet on protective pads/sheets. Install perimeter rails if required.
Attached: Install flashing components, drill anchor holes, secure feet/stands with bolts using the correct torque, seal meticulously.
6. Rail Installation: Secure longitudinal rails onto the mounting feet/stands.
7. Panel Mounting: Attach solar panels to the rails using module clamps. Connect panels electrically in series/parallel strings.
8. Ballast Placement (if applicable): Distribute the calculated ballast blocks evenly according to the engineering design.
9. Electrical Wiring: Run conduit from the array to the inverter location, connect to the inverter, and then to your main electrical panel. Performed by a licensed electrician.
10. Inspection & Commissioning: Final electrical and building inspections, system testing, and activation.
Why Professional Installation & Quality Mounting Matter
Installing solar on a flat roof involves complex engineering, roofing expertise, and electrical work. Mistakes can lead to:
Roof Leaks: Costly repairs and interior damage.
Structural Damage: Overloading the roof.
System Failure: Panels detaching in high winds.
Reduced Performance: Poor tilt or shading.
Voided Warranties: Improper installation often voids panel and roof warranties.
Invest in Security & Performance with YiJia Solar Mounting
Choosing a reliable, engineered mounting system is non-negotiable for flat roofs. YiJia Solar specializes in high-performance, code-compliant solutions designed for the unique challenges of flat roof installations:
Engineered for Safety: Rigorously tested for wind uplift and structural load requirements.
Superior Waterproofing: Integrated, reliable flashing solutions for penetrating systems.
Optimal Tilt Angles: Adjustable designs maximize your energy harvest.
Corrosion Resistance: Aluminum and stainless steel construction for decades of service.
Efficient Installation: Streamlined components reduce labor time and cost.
Ready to Harness the Sun on Your Flat Roof?
Don't leave the security and efficiency of your solar investment to chance. Understanding the complexities of how to mount solar panels on a flat roof highlights the necessity for expert design and installation using top-tier components.
Get a Custom Flat Roof Solar Mounting Quote Today!
Our solar engineers specialize in designing safe, efficient, and leak-proof flat roof solar installations using the best mounting systems for your specific roof. We handle the engineering, permitting, and partner with certified installers.
Click Here to Request Your Free Flat Roof Solar Assessment & Mounting System Proposal: [https://www.yijiasolar.com/contact/]
Discover the YiJia difference in solar flat roof mounting – where security, performance, and peace of mind are built-in.
