Introduction: Unlocking Solar Efficiency on Flat Surfaces
Installing solar panels on a flat roof requires precision and expertise to ensure optimal energy production and long-term durability. Whether you’re a homeowner or commercial property owner, understanding the ins and outs of solar panel mounting on flat roofs is crucial for a successful installation. This comprehensive guide breaks down the key steps, system types, and top-tier solutions from YJ Solar—your partner in transforming flat roofs into high-performance solar hubs. Explore our mounting systems at https://www.yijiasolar.com/solar-mounting-system/.

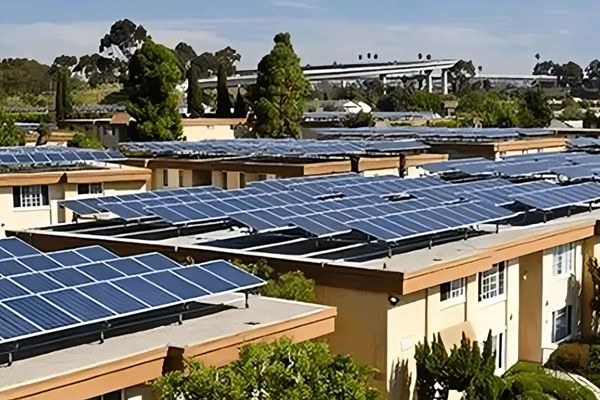

Why Flat Roofs Are Ideal for Solar Panels
Flat roofs offer unique advantages for solar panel installation:
1. Customizable Sunlight Optimization
Unlike pitched roofs, flat surfaces allow precise adjustment of panel angles to maximize sunlight capture. YJ Solar’s mounting systems feature adjustable tilt brackets (5°–30°) that let you align panels with your region’s solar path, boosting efficiency by 20–25% compared to fixed setups.
2. Non-Invasive Installation Options
Ballasted mounting systems—popular for flat roofs—use weighted blocks instead of drilling, preserving roof integrity:
· Avoids leaks and warranty voids
· Ideal for rental properties or roofs with sensitive membranes
· YJ Solar’s ballasted kits use interlocking concrete blocks (15–25 kg) for even weight distribution.
3. Durability in Extreme Conditions
Engineered to withstand harsh weather:
· Wind loads up to 240 km/h (aerodynamic frame design)
· Snow loads of 1.5 kN/m² (reinforced ballast blocks)
· Corrosion-resistant aluminum alloys for coastal environments
Choosing the Right Mounting System for Your Flat Roof
Two primary systems cater to different needs:

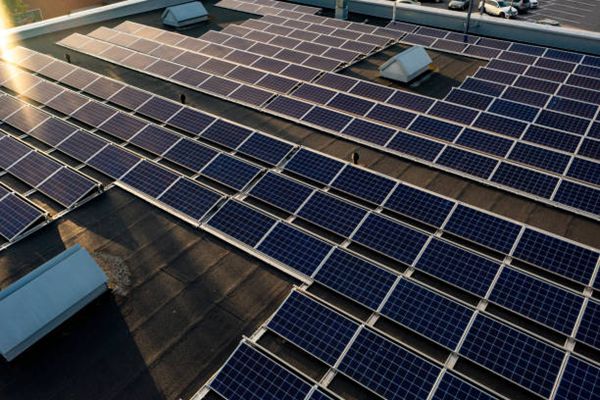

1. Ballasted Systems: Non-Penetrative & Versatile
Perfect for temporary or non-permanent setups:
· YJ Solar’s Ballasted Kits: Pre-assembled aluminum frames with interlocking ballast blocks, reducing installation time by 40%.
· No drilling required, ideal for TPO, EPDM, or modified bitumen roofs.

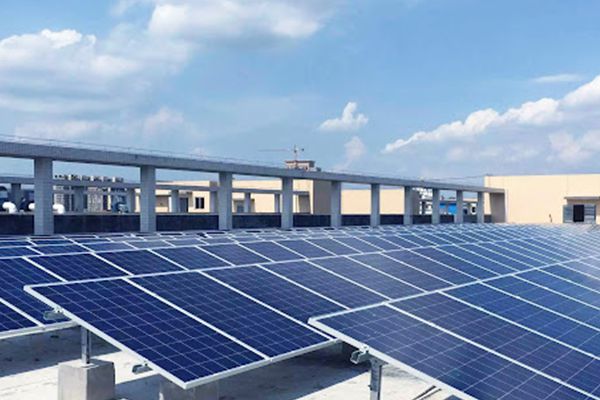

2. Penetrating Systems: Permanent & Secure
Suited for long-term installations:
· YJ Solar’s Penetrating Mounts: Waterproof flashing and corrosion-resistant fasteners ensure a leak-proof seal.
· Anchors directly to roof joists, offering superior stability in high-wind regions.
Step-by-Step Guide: Solar Panel Mounting on Flat Roof
Follow these expert steps for a seamless installation:
1. Roof Assessment & Planning
· Load-Bearing Check: Ensure your roof supports 50–75 kg/m² (YJ Solar offers free load analysis).
· Shade Mapping: Use tools like SunEye to identify areas with ≥6 hours of direct sunlight.
2. Layout & Marking
· Chalk lines to map panel rows, leaving 80 cm between rows for maintenance.
· Avoid shading from vents, HVAC units, or parapets (YJ Solar’s 3D design tools optimize layouts).
3. Mounting System Installation
Ballasted System Steps:
1. Lay aluminum base rails along marked lines.
2. Position ballast blocks every 1.2 m (0.8 m in high-wind areas).
3. Secure rails to blocks with interlocking clips (no drilling).
Penetrating System Steps:
1. Mark anchor points on roof joists (stud finder or roof plans).
2. Drill holes with waterproof grommets, insert corrosion-resistant bolts.
3. Attach base rails, ensuring level alignment (within 2° of horizontal).
4. Panel Attachment & Wiring
· Install panels using YJ Solar’s quick-lock clamps (2x faster than traditional bolts).
· Route PV cables through UV-resistant conduits to an inverter (shaded, ventilated area).
5. Final Testing
· Wind simulation test (blower door) for frame stability.
· Load test (150% system weight) to verify structural integrity.
Maintenance Tips for Long-Term Performance
Preserve your installation with these practices:
· Quarterly Inspections:
· Check ballast blocks for displacement or cracks.
· Tighten fasteners (YJ Solar’s self-locking nuts reduce loosening by 90%).
· Seasonal Prep:
· Remove snow within 24 hours to prevent load exceedance.
· Install wind braces before storm seasons (included in premium kits).
· Panel Cleaning:
· Wash with mild detergent every 6 months (dirty panels lose 15% efficiency).
Why YJ Solar Leads in Flat Roof Mounting
YJ Solar’s solutions stand out for:
· Innovative Design: Patent-pending interlocking ballast blocks reduce maintenance by 60%.
· Global Certification: UL, TÜV, AS/NZS compliant, with 10-year warranty and 25-year frame guarantee.
· Custom Solutions: 3D-printed adapters for irregular roofs—no project too complex.
· 24/7 Support: Expert team with 15+ years of flat roof solar experience.
Take Action: Transform Your Flat Roof Today
Ready to install solar panels on your flat roof? Contact YJ Solar for a free consultation:
1. Roof suitability assessment
2. Custom system recommendation based on your climate
3. Detailed quote with no hidden costs
Don’t miss out on renewable energy savings. Visit https://www.yijiasolar.com/solar-mounting-system/ to explore our flat roof mounts, Start your solar journey now with a system built for performance and durability!
