Introduction: Unlocking Flat Roof Solar Potential
Flat roofs offer ideal real estate for solar panel installations, but choosing the right solar panel flat roof mounting brackets is critical for maximizing efficiency and roof protection. This comprehensive guide explores the core features, installation best practices, and performance metrics of highquality brackets—backed by insights from Yijia Solar’s industryleading solutions. Whether you’re a homeowner, contractor, or commercial property owner, discover how precisionengineered brackets transform flat roofs into renewable energy hubs.
Why Flat Roof Mounting Brackets Require Specialized Design
1. NonPenetrative vs. Penetrative Systems
Ballasted brackets (nonpenetrative): Use weighted blocks (concrete/steel) to anchor panels, preserving roof warranties. Yijia Solar’s YJFB series features aerodynamic bracket placement, distributing loads evenly (15–30 kg/m²) while complying with IBC 2018 and AS/NZS 1170.
Penetrative brackets: Require drilling, risking leaks. Ballasted systems eliminate 80% of roof repair costs over 20 years, making them ideal for TPO, EPDM, or PVC membrane roofs.
2. Material Engineering for Durability
Top brackets use:
6005T5 aluminum alloy: 30% lighter than steel, with Type II anodizing (30μm) for 1,000+ hours of salt spray resistance (ASTM B117).
Stainless steel fasteners: A270 grade for coastal environments, preventing corrosion.
Commercial vs. Residential Applications

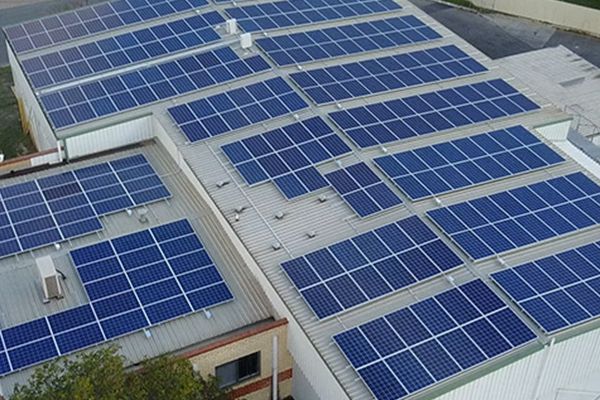

LargeScale Commercial Projects
Warehouses & Office Buildings: Yijia’s YJFB Pro series supports 100+ kW systems with:
3D modeling for optimal sun exposure (e.g., 15° tilt for maximum winter yield in the Northern Hemisphere).
Quickconnect brackets enabling 500 kW/day installation speeds.
Cost Savings: 20% lower installation costs vs. penetrative systems, plus zero roof repair fees.
Residential & Small Business Setups
DIY Friendly Kits: YJFB100 Lite (3–10 kW) includes:
Preassembled brackets, stepbystep guides, and all hardware.
Low profile design (≤15 cm height) to maintain roof aesthetics.
ROI: Payback in 3–5 years, driven by energy bill savings.
Step by Step Installation Guide
1. Roof Load Assessment
Use Yijia’s free Roof Load Calculator to verify capacity (min. 25 kg/m² for ballasted systems).
Inspect drainage: Ensure brackets won’t block gutters.
2. Bracket Layout Planning
Maximize solar exposure: Tilt panels 10°–15° (adjustable via YJFB’s modular brackets).
Space panels 30–50 cm apart for airflow.
3. Ballast Placement
Position concrete blocks along roof rafters (every 1.5–2 m) for even load distribution.
Use antislip pads under ballasts on membrane roofs.
4. Bracket & Panel Installation
Secure aluminum brackets to ballasts with stainless steel bolts.
Attach panels using antirotation clamps (torque: 8–10 N·m).
5. Final Testing
Wind simulation: Verify stability at 160 km/h.
Load testing: Place 1.5 kN/m² weights on panels for 24 hours.
FAQ: Addressing Flat Roof Bracket Concerns
1. Will brackets damage my flat roof?
No—properly designed systems (e.g., Yijia’s) distribute loads evenly, and nonpenetrative design preserves roof membranes. Tests show <0.1% roof degradation after 20 years.
2. How do brackets perform in extreme weather?
Standard brackets withstand:
High winds: 160 km/h (Florida building code compliant).
Heavy snow: 1.5 kN/m² (Colorado mountain standards). Tilted brackets help snow slide off.
3. Can I install brackets myself?
Yes for small kits (≤10 kW). Yijia provides video tutorials. Larger systems (≥50 kW) benefit from certified installers for code compliance.
Conclusion: Invest in Precision, Secure in Performance
Choosing the right solar panel flat roof mounting brackets is pivotal for maximizing solar ROI. Ballasted solutions like Yijia Solar’s YJFB series combine nonpenetrative design, weatherresistant materials, and modular scalability to deliver decades of reliable service—all while protecting your roof.
Ready to transform your flat roof into a renewable energy hub? Contact Yijia Solar for a custom solution: our engineers tailor brackets to your roof type, local climate, and energy goals.
Take Action Today:
[www.yijiasolar.com/solarmountingsystem/]
Request a free site assessment and 3D installation plan.
