Mounting Solar Panels on Flat Roof: Ultimate Guide to Efficient Systems & Expert Installation

Introduction: Harnessing Solar Power on Flat Surfaces

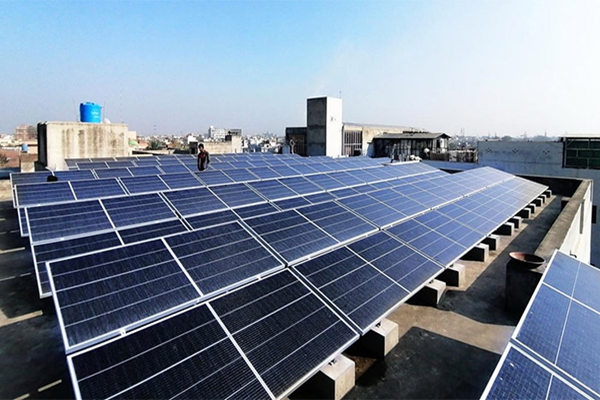

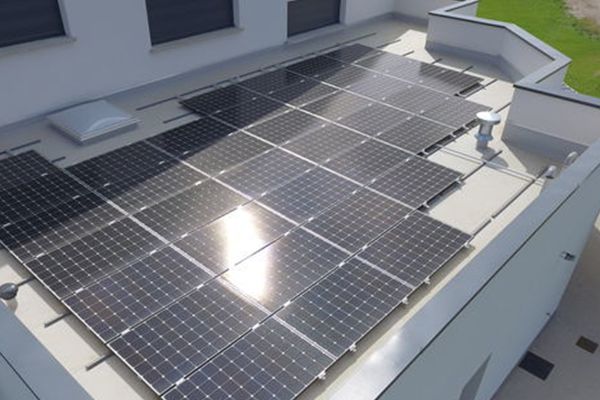

Mounting solar panels on a flat roof presents a strategic opportunity for homeowners and businesses to embrace renewable energy. Whether you aim to reduce electricity costs or minimize your carbon footprint, understanding the nuances of flat roof solar mounting systems is essential for a successful installation. This comprehensive guide unpacks the key steps, system types, and expert solutions from YJ Solar—your partner in transforming flat roofs into high-performance energy hubs. Explore our innovative products at https://www.yijiasolar.com/solar-mounting-system/.

The Advantages of Flat Roof Solar Mounting Systems

Flat roof installations offer distinct benefits that cater to both functionality and practicality:

1. Customizable Sunlight Optimization

Unlike pitched roofs, flat surfaces allow precise adjustment of panel angles to maximize solar exposure. YJ Solar’s mounting systems feature adjustable tilt brackets (5°–30°), enabling users to align panels with the sun’s trajectory—boosting energy production by 20–25% compared to fixed setups. This adaptability is crucial for regions with varying solar angles throughout the year.

2. Non-Penetrative Installation Options

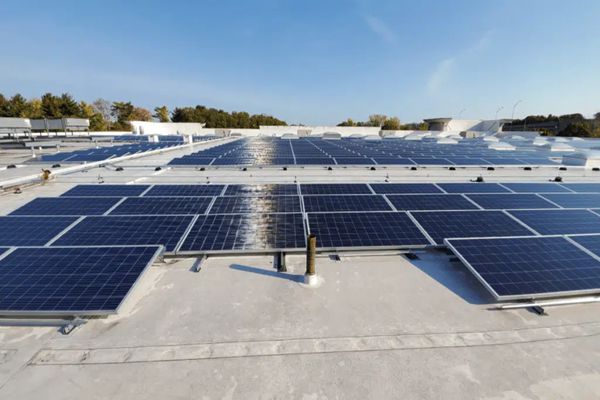

Ballasted mounting systems, a staple in flat roof setups, eliminate the need for drilling:

· Non-Invasive Design: Weighed blocks secure panels without penetrating the roof, preserving warranties and preventing leaks.

· Ideal for Diverse Roofs: Perfect for TPO, EPDM, or metal roofs where structural modifications are restricted.

· YJ Solar’s Innovation: Interlocking concrete blocks (15–25 kg) distribute weight evenly, reducing stress on roof membranes.

3. Engineered for Extreme Weather Resilience

Flat roof solar panel mounting systems must withstand harsh conditions:

· Wind Loads: Tested to resist 240 km/h winds with aerodynamic frame designs and anti-lift brackets.

· Snow Loads: Capable of handling 1.5 kN/m², preventing collapse during heavy snowfall.

· Corrosion Resistance: High-grade aluminum alloys with anodized finishes ensure longevity in coastal or high-moisture environments.

Choosing the Right Flat Roof Solar Mounting System

Selecting the optimal system requires evaluating these core factors:

1. System Type: Ballasted vs. Penetrating

Ballasted Systems:
Ideal for temporary or rental setups, these rely on weighted blocks for stability. YJ Solar’s ballasted kits include pre-assembled aluminum frames and interlocking blocks, reducing installation time by 40%. No drilling means zero risk to roof warranties.

Penetrating Systems:
Suited for permanent installations, these anchor directly to the roof structure. YJ Solar’s penetrating mounts feature waterproof flashing and corrosion-resistant fasteners, ensuring a leak-proof seal for decades. Perfect for regions with extreme weather.

2. Material Quality and Durability

· Aluminum Frames: YJ Solar uses 6005-T5 aluminum alloy, 1.8x stronger than standard aluminum, with anodized finishes to resist UV degradation.

· Fasteners: 316 stainless steel screws prevent rust, even in saltwater environments.

· Ballast Blocks: Precast concrete with reinforced steel cores withstands long-term pressure without cracking.

3. Scalability and Compatibility

YJ Solar’s modular designs accommodate all major solar panel brands and allow seamless expansion. Whether starting with a 5kW residential system or a 500kW commercial array, our mounts grow with your energy needs.

Step-by-Step Guide: Mounting Solar Panels on a Flat Roof

Follow these expert-backed steps for a seamless installation:

1. Pre-Installation Assessments

· Roof Load Analysis: Ensure your roof supports 50–75 kg/m² (YJ Solar offers free load testing).

· Shade Mapping: Use tools like SunEye to identify areas with ≥6 hours of direct sunlight daily. Avoid shading from vents, chimneys, or nearby structures.

2. Layout Planning and Marking

· Use chalk lines to map panel rows, leaving 80 cm between rows for maintenance. YJ Solar’s 3D design tools optimize layouts for complex roof shapes, such as L-shaped or multi-level structures.

3. Mounting System Installation

Ballasted System Steps:

1. Lay aluminum base rails along marked lines.

2. Position ballast blocks every 1.2 m (0.8 m in high-wind zones).

3. Secure rails to blocks with interlocking clips (no drilling required).

Penetrating System Steps:

1. Mark anchor points on roof joists (detected via stud finder or roof plans).

2. Drill holes with waterproof grommets, insert corrosion-resistant bolts.

3. Attach base rails, ensuring level alignment (within 2° of horizontal) with a spirit level.

4. Panel Attachment and Electrical Wiring

· Install panels using YJ Solar’s quick-lock clamps—2x faster than traditional bolt systems.

· Route PV cables through UV-resistant conduits to an inverter, installed in a shaded, ventilated area.

5. Final Testing and Certification

· Wind simulation test using a blower door to check frame stability.

· Load test with 150% of the system’s weight to verify structural integrity.

· YJ Solar provides a 25-point inspection checklist, including thermal imaging for wiring hotspots.

Maintenance Tips for Long-Term Performance

Preserve your flat roof solar panel mounting system with these practices:

 · Quarterly Inspections:

Check ballast blocks for displacement or cracks; tighten fasteners (YJ Solar’s self-locking nuts reduce loosening by 90%).

· Seasonal Prep:
Remove snow within 24 hours to prevent load exceedance; install wind braces before storm seasons (included in premium kits).

· Panel Cleaning:
Wash with mild detergent every 6 months—dirty panels lose 15% efficiency, making cleaning a cost-saving practice.

Why YJ Solar Leads in Flat Roof Solar Mounting

YJ Solar’s solutions combine innovation with reliability:

· Patent-Pending Design: Interlocking ballast blocks eliminate adhesive use, reducing maintenance by 60%.

· Global Certification: UL, TÜV, and AS/NZS compliant, with a 10-year warranty and 25-year frame performance guarantee.

· Custom Solutions: 3D-printed adapters for irregular roofs—no project is too complex.

· End-to-End Support: Free roof assessment, 24/7 technical assistance, and a team with 15+ years of flat roof solar expertise.

Take Action: Transform Your Flat Roof Today

Ready to install solar panels on your flat roof? Contact YJ Solar for a free consultation:

 1. Expert roof suitability assessment

2. Custom system recommendation based on your climate and energy needs

3. Detailed quote with no hidden costs

 Don’t miss out on renewable energy savings. Visit https://www.yijiasolar.com/solar-mounting-system/ to explore our flat roof solar panel mounting systems, or email sales@yijiasolar.com to schedule a call. Start your solar journey now with a system built for performance, durability, and efficiency!
