Installing solar panels on metal roofs requires specialized mounting systems that balance durability, safety, and roof protection. This comprehensive guide explores the unique advantages of metal roof solar mounting brackets, installation best practices, and why YIJIA Solar’s solutions lead the industry in innovation and reliability—all while addressing key concerns like waterproofing and structural integrity.
The Unique Challenges of Metal Roof Solar Installations
Metal roofs present distinct characteristics that demand specialized mounting solutions:
· Roof Material Sensitivity: Standing seam, corrugated, or trapezoidal metal roofs require non-penetrative mounting to avoid leaks.
· Thermal Expansion: Metal expands/contracts with temperature changes, necessitating flexible mounting designs.
· Aesthetic Preservation: Homeowners and businesses often prioritize maintaining the roof’s original appearance.
YIJIA Solar’s metal roof mounting systems tackle these challenges head-on, combining engineering precision with user-friendly design.
Key Advantages of Specialized Metal Roof Mounting Brackets
Non-Penetrative Design for Waterproof Integrity
Unlike traditional rooftop systems that require drilling, YIJIA Solar’s mounting brackets use clamps that attach directly to metal roof seams. This design:
· Eliminates the risk of leaks caused by penetration holes
· Maintains the roof’s warranty (critical for commercial properties)
· Reduces installation time by 30% compared to penetrative systems
Corrosion-Resistant Materials for Longevity
All components are constructed from:
· Anodized 6005-T5 aluminum (salt spray tested to ASTM B117)
· 316 stainless-steel fasteners (ideal for coastal environments)
· UV-stabilized EPDM gaskets to prevent water ingress
Wind & Snow Load Compliance
YIJIA’s systems are engineered to withstand:
· 140+ mph wind speeds (meeting ASCE 7 standards)
· 50+ psf snow loads (tested via finite element analysis)
· Seismic activity in zones up to IV (UBC 97 compliant)
Types of Metal Roof Solar Mounting Systems
Standing Seam Metal Roof Brackets
Designed for roofs with vertical seams (3–6 inches apart), these brackets clamp onto seams without drilling:
· Quick-Connect Clamps: YIJIA’s patent-pending design allows tool-free adjustment within 15 minutes.
· Height-Adjustable Pads: Accommodate seam heights from 1.5–4 inches, ideal for older or modified roofs.

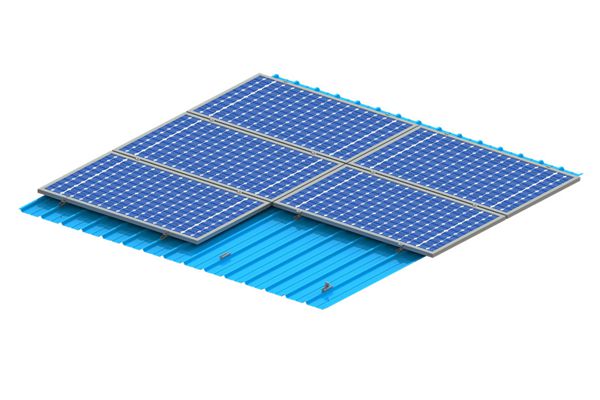

Corrugated Metal Roof Solutions
For corrugated panels, YIJIA offers:
· Peak-Locking Brackets: Fit into panel ridges, distributing weight evenly across the roof surface.
· EPDM Sealing Strips: Inserted between brackets and panels to prevent water seepage.
Solar Tracking Systems for Metal Roofs
YIJIA’s innovative roof mounted solar panel tracking system integrates seamlessly with metal roofs:
· Single-Axis Trackers: Follow the sun east-to-west, increasing energy yield by 25–30%.
· Wind-Resistant Design: Auto-stow function positions panels horizontally during storms.
Step-by-Step Installation Guide for Metal Roofs
1. Roof Assessment & Measurement
· Identify roof type (standing seam, corrugated) and panel profile.
· Use YIJIA’s online calculator to determine bracket spacing (typically 24–36 inches).
2. Bracket Placement & Clamping
· For standing seams: Align brackets with seams, secure with torque-controlled clamps (12–15 ft-lbs).
· For corrugated roofs: Position brackets over panel peaks, ensuring gaskets are fully seated.
3. Railing & Panel Installation
· Attach aluminum rails to brackets using pre-drilled holes.
· Mount solar panels with anti-rotation clamps, leaving 1–2 inches for thermal expansion.
4. Electrical & Safety Checks
· Route wiring through non-metallic conduits to prevent short circuits.
· Perform a waterproof test by spraying hoses on bracket areas for 10 minutes.
Why YIJIA Solar Leads in Metal Roof Mounting Solutions
Engineering Expertise
· 3D-printed prototypes tested in simulated environments (temperature cycles, wind tunnels)
· Collaboration with metal roof manufacturers to ensure compatibility
Comprehensive Product Range
· Over 20 bracket models for all metal roof types
· PV solar mounting systems compatible with major panel brands (Tesla, LG, Jinko)
Customer-Centric Support
· Free roof assessment tool on www.yijiasolar.com
· Installation videos for DIYers and contractors
· 10-year product warranty + 25-year structural guarantee
Common Questions About Metal Roof Mounting Brackets
Will mounting brackets void my metal roof warranty?
No—YIJIA’s non-penetrative systems are approved by major roof manufacturers (e.g., McElroy Metal, ASC Profiles).
Can I install solar panels on a metal roof myself?
DIY installation is possible with YIJIA’s pre-assembled kits, but we recommend hiring a certified installer for systems over 5kW.
How do tracking systems affect metal roof integrity?
YIJIA’s trackers are designed to apply minimal additional load (≤5 psf), tested via structural engineering reports.
Ready to Secure Your Metal Roof Solar Installation?
Investing in high-quality metal roof solar mounting brackets is essential for protecting your roof and maximizing solar efficiency. YIJIA Solar’s solutions combine innovation, durability, and ease of installation, making them the preferred choice for homeowners, contractors, and commercial properties.
Contact YIJIA Solar today for a free consultation:
· Visit https://www.yijiasolar.com/solar-mounting-system/ to explore metal roof brackets
· Request a custom quote based on your roof type and panel layout
· Speak with a technical expert about tracking system compatibility
Don’t compromise on roof safety—choose YIJIA Solar for mounting systems that blend performance with peace of mind.
