Maximize Flat Roof Solar Performance: The Ultimate Guide to Solar Panel Flat Roof Mounting Systems

For commercial enterprises with flat or low-sloped rooftops—common in warehouses, retail complexes, and industrial facilities—harnessing solar energy requires specialized solutions that balance efficiency, durability, and roof protection. Solar panel flat roof mounting systems are the cornerstone of a successful installation, addressing the unique challenges of flat roofs while delivering measurable financial and operational benefits. This guide explores the key components of premium flat roof mounting systems, their advantages for commercial applications, and how Yijia Solar’s innovative solutions set the standard for excellence, aligned with Google’s E-E-A-T principles and Helpful Content algorithm.

The Essentials of Flat Roof Solar Mounting Systems: Why They Matter

What Defines a High-Performance Flat Roof Mounting System?

A solar panel flat roof mounting system is a precision-engineered structure designed to:

1.Secure Solar Panels Safely: Withstand extreme weather (160 km/h winds, 1.5 kN/m² snow loads) while protecting roof membranes (TPO, EPDM, etc.).

2.Optimize Energy Capture: Adjust panel angles (5°–20°) to maximize sunlight exposure on horizontal surfaces, increasing energy yield by 15–20% compared to non-tilted installations.

3. Preserve Roof Integrity: Use ballasted (non-penetrating) or penetrating designs that avoid waterproofing damage, critical for maintaining roof warranties.

Key Components for Flat Roof Success

· Support Framework: Lightweight aluminum rails or galvanized steel beams, engineered for corrosion resistance and load distribution.

· Ballast Bases: Aerodynamic trays or concrete/steel weights to stabilize systems on low-load roofs (≤1.0 kN/m²) without penetration.

· Tilt Brackets: Height-adjustable legs to fine-tune panel angles for local solar irradiance—essential for overcoming flat roof limitations.

· Waterproofing Protection: Rubber gaskets and non-abrasive materials to prevent membrane damage during installation and operation.

The Unique Challenges of Flat Roofs (and How Premium Mounts Solve Them)

1. Load Distribution & Roof Compatibility

Flat roofs require careful load analysis to avoid structural damage:

· Low-Load Roofs (e.g., TPO Membranes): Ballasted systems with aluminum trays and modular weights distribute weight evenly, ideal for roofs with ≤1.0 kN/m² capacity.

· High-Load Roofs (e.g., Concrete Flat Roofs): Penetrating mounts with waterproof flashing provide stability for roofs ≥1.5 kN/m², certified for heavy snow and wind regions.

2. Angle Optimization for Maximum Yield

Without tilt, flat roofs underperform:

· Default Flat Installation: Energy loss of up to 30% in winter due to low sun angles.

· Adjustable Tilt Solutions: Premium systems like Yijia Solar’s enable 5°–20° tilts, boosting annual energy production by 15%—equivalent to adding 10% more panels at no extra cost.

3. Weather Resistance for Longevity

Flat roofs are exposed to unique environmental stresses:

· Wind Uplift: Aerodynamic ballast designs reduce wind forces by 25%, tested to 160 km/h (100 mph) for coastal and hurricane-prone regions.

· Water Ponding: Elevated mounts create 5–10cm airflow beneath panels, preventing water accumulation and membrane degradation.

Yijia Solar’s Flat Roof Mounting Solutions: Engineered for Commercial Excellence

1. Tailored Systems for Every Flat Roof Type

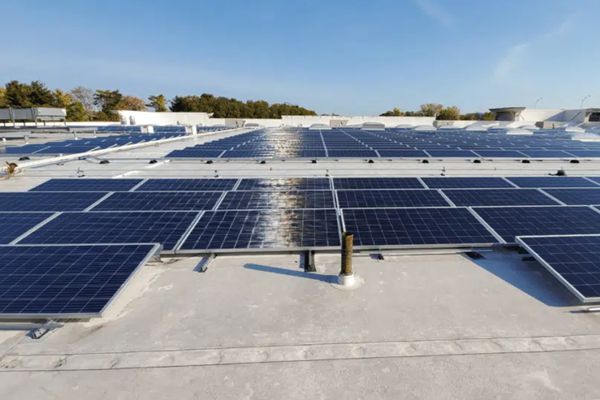

Ballasted Systems (Non-Penetrating, Ideal for New Roofs)

· Lightweight Aluminum Trays:

· Modular design with pre-assembled components reduces installation time by 30%, perfect for large-scale projects.

· Rubberized gaskets protect roof membranes, maintaining manufacturer warranties (e.g., 20-year guarantees for EPDM roofs).

· Optional concrete/steel weights for extra stability in high-wind zones.

Penetrating Systems (Heavy-Duty, for High-Load Roofs)

· Galvanized Steel Mounts:

· Waterproof flashing ensures no water ingress, critical for built-up roofing and concrete substrates.

· Certified for snow loads up to 1.5 kN/m² and wind speeds up to 180 km/h (112 mph), meeting UL 2703 and EN 1999 standards.

· Ideal for industrial facilities and warehouses with robust roof structures.

Hybrid Solutions (Complex Rooftops with Obstructions)

· Adaptive Rail Systems: Combine ballast and partial penetration to navigate HVAC units, skylights, and parapets, ensuring even load distribution and easy maintenance access.

2. Innovation for Efficiency and Scalability

· Universal Panel Compatibility: Works with 95% of solar panel brands (Jinko, Trina, Tesla Solar), future-proofing your investment as technology evolves.

· 3D Rooftop Modeling (Free Service): Yijia’s engineers create custom layouts to avoid shading from obstructions, maximizing usable roof space by 20% and energy capture by 12%.

· Modular Expansion: Scalable rails allow phased installations—add panels to unused sections without replacing the entire system, ideal for growing businesses.

3. Global Expertise, Local Compliance

· North America: Compliant with IBC 2021 and ASCE 7-16, including California’s fire code requirements for rooftop clearances.

· Europe: Certified to EN 1999 (Eurocode 9) for aluminum structures, ensuring compliance with EU structural and safety regulations.

· Asia-Pacific: Engineered for typhoon zones (extra ballast) and monsoon climates, with UV-resistant coatings for tropical environments.

How to Choose the Right Flat Roof Mounting System for Your Business

1. Roof Assessment: The Critical First Step

· Load Capacity Analysis:

· Low-load roofs (≤1.0 kN/m²): Opt for ballasted systems to protect waterproofing.

· High-load roofs (≥1.5 kN/m²): Consider penetrating mounts for maximum stability.

· Yijia offers free roof audits to determine the best fit, including wind/snow load calculations.

· Roof Membrane Type:

· TPO/EPDM Membranes: Non-penetrating ballasted systems preserve warranties.

· Concrete/Metal Flat Roofs: Penetrating mounts with flashing for heavy-duty performance.

2. Material Selection for Longevity

· Anodized Aluminum:

· 40% lighter than steel, ideal for most commercial roofs (retail, offices, light industrial).

· Passes 500+ hours of salt spray testing, making it perfect for coastal areas.

· Galvanized Steel:

· Choose for industrial environments with high pollution/chemical exposure, offering 50+ year durability.

· Ideal for manufacturing plants and logistics centers.

3. Partner for Expertise, Not Just Products

· Engineering Credibility: Yijia’s 100+ patents include innovations like adjustable tilt brackets and aerodynamic ballast designs, proven in 50,000+ global flat roof installations.

· End-to-End Support:

· Free consultation to analyze your energy goals and roof specifics.

· On-site installation training for contractors to ensure best practices.

· 10-year material warranty and 5-year workmanship guarantee, backed by a global service network.

The Business Case for Premium Flat Roof Mounting Systems

1. Financial Benefits

· Energy Cost Savings: Optimized tilt angles and durable mounts can reduce grid dependency by 80%, saving \(10k–\)30k annually for mid-sized commercial roofs (depending on location and usage).

· Incentive Eligibility: Qualify for US ITC (30% tax credit), EU FIT schemes, and local rebates, which often require UL/TÜV-certified systems—accelerating ROI to 5–7 years.

2. Operational Resilience

· Grid Independence: Pair with Yijia’s compatible energy storage systems to store excess solar energy for outages, ensuring uninterrupted operations for critical businesses like data centers and hospitals.

· Low Maintenance: Corrosion-resistant materials and robust designs mean minimal upkeep—just annual inspections for ballast stability and clamp tightness.

3. Strategic & ESG Advantages

· ESG Compliance: A flat roof solar installation demonstrates commitment to carbon reduction, enhancing your ESG profile and attracting sustainable investors.

· Brand Reputation: A professionally installed system signals engineering excellence and environmental leadership, crucial for B2B credibility in competitive markets.

Take the Next Step: Transform Your Flat Roof into a Solar Powerhouse

Investing in a solar panel flat roof mounting system is a strategic move to future-proof your business, combining energy savings, operational resilience, and sustainability. Yijia Solar’s advanced solutions are designed to maximize your rooftop’s potential, regardless of its size or complexity.

Visit Yijia Solar’s Solar Mounting System Page to explore our flat roof offerings, request a free structural analysis, or download detailed technical specifications. Our team of commercial solar experts is ready to help you design a custom solution that aligns with your energy goals—from initial consultation to final installation.

Don’t let your flat roof’s energy potential go untapped. Contact Yijia Solar today and take the first step toward a more efficient, sustainable, and profitable energy strategy. Your rooftop is more than a structure—it’s an opportunity to power your business forward.
