InDepth Application and Technical Analysis of Photovoltaic Inverters in Pump Systems

 Core Architecture of Photovoltaic Pump Systems

 1.1 System Composition and Energy Flow

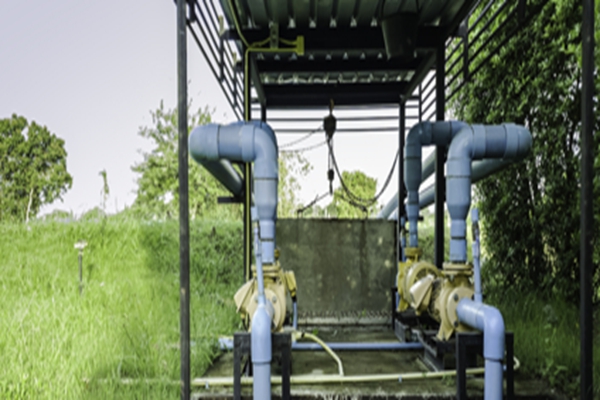

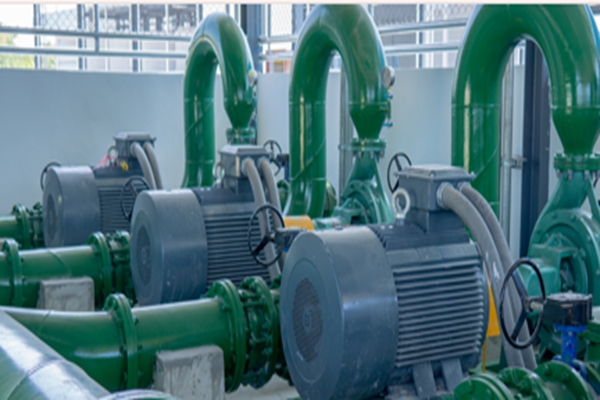

 Pumps: Driven by AC power from inverters, pumps (e.g., centrifugal, axialflow) draw water from sources, with power ranges from hundreds of watts to hundreds of kilowatts.

 Water Storage Units: Ensure continuous water supply, with freezeresistant designs (e.g., insulated tanks) required in cold regions.

 1.2 OffGrid Operation and Power Switching Mechanisms

 Direct Drive (No Energy Storage): Simple topology converts solar DC to AC via inverters for direct pump operation. Low cost but sunlightdependent (pumps may stop under insufficient light).

 GridTie Switching Solution: Automatically switches to utility power during low光照 (irradiance), adding grid interface modules and switches for continuity, though increasing complexity and costs.

 Key Technical Breakthroughs in PV Inverters

 2.1 MPPT Algorithm Optimization

 Perturbation and Observation (P&O): Fast tracking under dynamic light but prone to errors (5–10% deviation) during drastic irradiance changes.

 Incremental Conductance (INC): More accurate tracking (3–5% error) under dynamic conditions, especially during rapid light fluctuations. Recommendation: Use INC for highefficiency systems.

 2.2 MultiLevel Protection Systems

 DryRun Detection: Stops pumps when water levels are low to prevent motor damage from overheating.

 Harmonic Suppression: Maintains THD <5% to comply with standards and improve power quality.

 Lightning Protection: Installs surge arresters to divert lightning energy and safeguard equipment.

 Voltage/Current Protection: Includes overvoltage, undervoltage, overcurrent, and overload protections to prevent hardware damage.

 Intelligent Sleep and WakeUp Strategies

 3.1Irradiance Forecasting Model: Uses historical data and meteorology to predict light levels for optimal inverter scheduling.

 3.2Standby Power Reduction: Enters sleep mode at low irradiance, cutting power consumption to 10–20% of normal operation while maintaining monitoring.

 3.3Adaptive WakeUp: Resumes operation when irradiance exceeds a configurable threshold, balancing efficiency and responsiveness.

 ScenarioBased Applications and Performance Data

 4.1 Arid Region Agricultural Irrigation (Xinjiang, China)

 Solution: PV inverters adjust pump speed in real time based on light levels, using MPPT for maximum energy harvest.

 Outcomes: 40% daily water savings, reducing costs and easing water stress.

 4.2 Island Freshwater Supply (Sanya, China)

 System: PV pumps + reverse osmosis (RO) purification, producing 1,000 m³/day.

 Efficiency: 60% energy utilization improvement, gridindependent operation, and guaranteed water quality.

 4.3 Desert Ecological Restoration (Kubuqi Desert)

 Project: PV pumps extract groundwater for vegetation irrigation.

 Impact: Stabilized groundwater levels, increased vegetation coverage, and reduced sand erosion over three years.

 Product Portfolio and Selection Guide

 5.1 HD300 Industrial Series

 Testing: 7day durability tests in harsh agricultural environments confirmed reliability under fluctuating light.

 Application: Suitable for industrial scenarios (e.g., irrigation in challenging climates).

 5.2 HD100 Residential Model

 Features: Lowvoltage input (220V singlephase) and boost modules (<2.2kW) reduce PV panel count by 30%, lowering costs for home systems.

 5.3 HD500 Modular Series (800kW Class)

 Design: Modular architecture enables flexible installation and maintenance.

 African Projects: Cluster control optimized system efficiency for largescale water supply, meeting regional demands.

 Technical Challenges and Future Directions

 6.1 Reliability in Harsh Environments

 IP54 Protection: Dusttight and waterresistant design tested under simulated sandstorms to define operational limits (e.g., maximum dust concentration and wind speed).

 6.2 Digital Twin Integration

 IoT Data Collection: Sensors monitor realtime parameters (temperature, current, vibration) for lifecycle prediction.

 Lifespan Model: Machine learningbased model achieved 98% prediction accuracy in initial tests, with plans for further optimization.

 6.3 MultiEnergy Hybrid Systems

 WindSolarStorage Integration: Balances energy supply via an intelligent management platform, featuring realtime monitoring, energy dispatch, and hierarchical architecture for reliability.

This comprehensive overview highlights the technical versatility and practical impacts of PV inverters in pump systems, addressing efficiency, durability, and sustainability across diverse applications.
