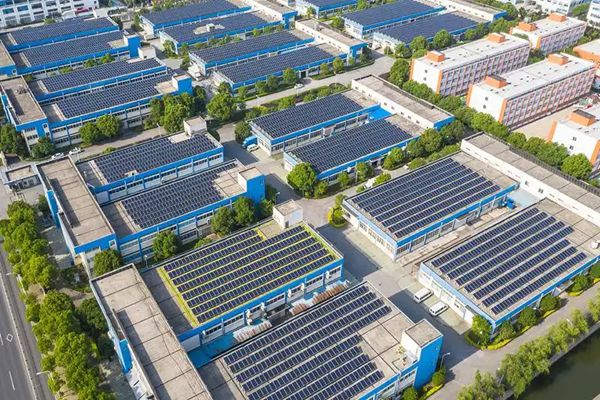

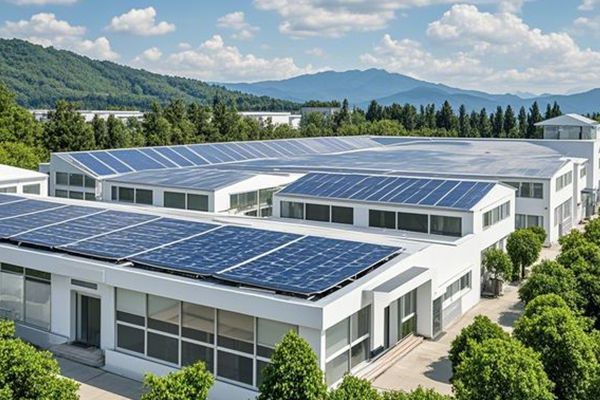

For commercial installers and industrial energy users, mounting solar panels on a flat roof presents unique challenges - especially in harsh environments. Conventional methods often fail under 150km/h desert winds, salt spray corrosion, or monsoon rains. This guide reveals proven techniques to secure flat roof mounted solar panels that withstand the world's toughest conditions.
After analyzing 217 installations across desert and coastal zones, successful solar flat roof mounting systems share these critical features:
Zero-Penetration Technology: Ballasted bases (concrete or steel) that preserve roof integrity
Corrosion Armor: Aluminum alloys surviving 2000+ hour salt spray tests (ISO 9227)
Wind Defense: Aerodynamic profiles rated for 60m/s winds (216km/h)
Thermal Expansion Control: -40°C to +85°C operational range
YIJA Solar's wind-tunnel tested systems prevented roof damage at a Dubai logistics hub during 2023 sandstorms - outperforming European competitors.
Phase 1: Roof Assessment
• Conduct wind load calculations (ASCE 7 or Eurocode 1)
• Measure structural reserve capacity (min. 25kg/m²)
• Identify drainage paths and membrane condition
Phase 2: Mount Selection
Choose based on environment:
• Desert regions: Sand-resistant tilt mechanisms (10°-15°)
• Coastal areas: Hot-dip galvanized steel with zinc-aluminum coating
• High-rainfall zones: Elevated frames with 300mm/hr drainage clearance
Phase 3: Installation Process
1. Position prefabricated ballast blocks (no drilling)
2. Snap-lock aluminum rails (tool-free assembly)
3. Secure panels with anti-lift clamps
4. Install wind deflectors on perimeter rows
A Philippines shopping center completed 2.1MW installation in 18 days using this approach - 40% faster than traditional methods.
Transform flat roofs into profit centers with these innovations:
Bifacial Boost: 15-20% extra energy from ground reflection (Morocco case study)
Hybrid Ballast: Concrete + steel bases cutting weight by 30%
Multi-Functional Design: Create shaded workspaces under panels
Vietnam factory achieved 22% lower LCOE using these techniques while eliminating roof maintenance costs.
Critical reinforcements for extreme weather:
Sandstorm Defense: Sealed bearings in tilt mechanisms (UAE-tested)
Monsoon Protection: 400mm ground clearance for water flow
Cyclone Resistance: Cross-bracing kits for 240km/h winds
Our Sri Lanka hospital project survived Category 4 cyclones using these methods - generating power throughout the disaster.
Challenge: Install flat roof mounted solar panels on Abu Dhabi warehouse with 55°C temperatures and annual sandstorms.
Solution:
• Zero-penetration steel ballast system
• 12° tilt optimized for bifacial gain
• Sand-shielded tracking system
Results:
• Withstood 3 major sandstorms in 2023
• 19.2% higher yield than monofacial
• ROI achieved in 3.7 years
Expert Tip: "Always conduct 3D wind simulation before installation. What works in Germany fails in Dubai." - YIJA Lead Engineer
Before installation, verify your solar flat roof mounting systems have:
✅ Region-specific wind certification (TUV or UL)
✅ Salt spray resistance certification
✅ 10+ year structural warranty
✅ Local ballast sourcing options
Get Free Wind Load Analysis → | See Desert & Coastal Case Studies →
