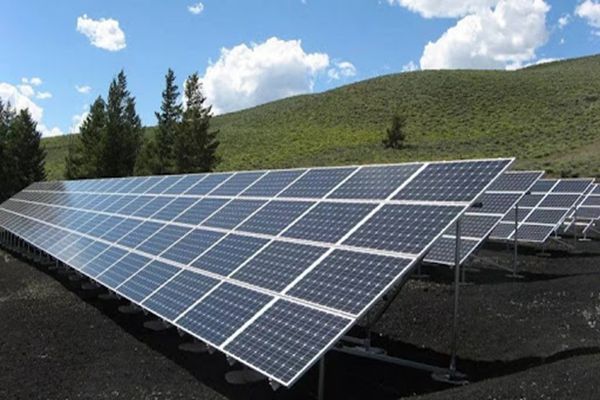

Installing a ground mount solar system can seem daunting, but with the right guidance and high-quality components, it’s a straightforward process that unlocks long-term energy savings. This comprehensive guide walks you through every step—from site preparation to final system activation—while highlighting YIJIA Solar’s innovative ground mount solar racking and tracking systems designed for efficiency and durability.
Pre-Installation Planning: The Foundation of a Successful Setup
1. Site Assessment & Permitting
Before breaking ground, conduct a thorough site evaluation:
· Sun Exposure: Use a solar pathfinder to ensure the area receives 6+ hours of direct sunlight daily.
· Shading Analysis: Remove any trees or structures that cast shadows on the installation site.
· Permitting: Contact local authorities for zoning regulations and building permits. YIJIA Solar provides permit-ready drawings to simplify this process.
2. Choose the Right System Type
Select between:

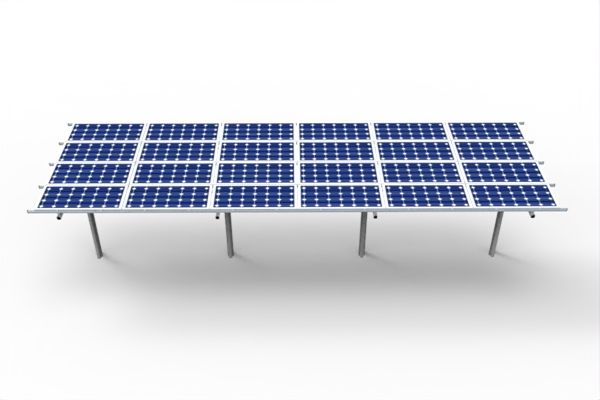

· Fixed Tilt Systems: Ideal for budget-friendly setups, YIJIA Solar’s fixed tilt racks offer adjustable angles (10°–45°) for optimal sun exposure.
· Single-Axis Tracking Systems: These motorized systems follow the sun, increasing energy production by 25–30%. YIJIA’s tracking systems feature weather-resistant controllers and self-diagnostic functions.
· Dual-Axis Tracking Systems: For maximum efficiency in areas with extreme seasonal sunlight changes.
Essential Tools & Materials for Installation
Gather these items before starting:
· Tools: Post hole digger, torque wrench, level, impact driver, safety gear (gloves, hard hat)
· YIJIA Solar Components:
· Ground mount solar racking system (galvanized steel or anodized aluminum)
· Mounting brackets, screws, and anti-corrosion washers
· Tracking system motors (if applicable)
· Concrete or helical piles for foundations
Step-by-Step Installation Process
Stage 1: Foundation Setup (Day 1–2)
Option 1: Helical Pile Foundations (Ideal for Most Soils)
1.Mark pile locations using the YIJIA Solar layout diagram, ensuring 6–8 feet between rows for maintenance.
2.Use a pile driver to insert helical piles 3–5 feet into the ground (depth varies by soil type).
3.Check vertical alignment with a spirit level and secure piles with locking collars.
Option 2: Concrete Foundations (For Rocky Terrain)
1.Dig 18-inch diameter holes to frost line depth (typically 3–4 feet).
2.Pour concrete and insert YIJIA Solar’s prefabricated anchor bolts, ensuring they’re level and aligned.
3.Allow 48 hours for concrete to cure.
Stage 2: Installing the Racking System (Day 3)
1.Attach horizontal rails to the foundation piles using YIJIA’s quick-connect clamps. Tighten bolts to 15–20 ft-lbs of torque.
2.Install vertical supports for tracking systems, ensuring motor mounts are aligned with the north-south axis.
3.For terraced landscapes, use YIJIA’s adjustable leg kits to level the racking on sloped terrain.
Stage 3: Mounting Solar Panels (Day 4)
1.Place panels on the racking, leaving 2–3 inches between them for airflow.
2.Secure panels with YIJIA’s anti-rotation clamps, ensuring each clamp is fastened to the rail’s pre-drilled holes.
3.For tracking systems, connect panel frames to the tracking arms using pivot brackets.
Stage 4: Electrical Wiring & System Activation (Day 5)
1. Run DC cables from panels to a combiner box, following YIJIA’s wiring diagram.
2. Connect the combiner box to an inverter, then route AC cables to the main electrical panel.
3. Perform a safety check: test voltage, inspect connections for corrosion, and ensure grounding meets NEC standards.
4.Activate the system and monitor tracking functionality (if applicable) using YIJIA’s mobile app.
Tips for Maximizing Efficiency & Safety
For DIY Installers:
· Never work on the system during rain or high winds.
· Use YIJIA Solar’s pre-assembled kits to reduce installation time by 50%.
For Professionals:
· Incorporate YIJIA’s ground mount solar tracking system for clients seeking maximum energy yield. Their single-axis systems require minimal maintenance and feature a 10-year warranty.
· Always follow the manufacturer’s torque specifications to prevent component damage.
Why Choose YIJIA Solar for Installation Components
Engineered for Ease
· Quick-Connect Design: YIJIA’s racking systems eliminate the need for on-site drilling, reducing installation errors.
· Pre-Labeled Parts: Each component is marked for easy identification, streamlining the setup process.
Durability You Can Trust
· Materials: Anodized aluminum (coastal areas) or galvanized steel (industrial environments) that withstands salt spray (ASTM B117) and 140 mph winds.
· Warranty: 10-year product warranty on racking and tracking systems, plus 25-year structural support.
Expert Support
YIJIA Solar offers:
· Installation videos and 3D manuals for every product
· 24/7 technical support for wiring and tracking system issues
· Custom layout designs based on your site’s topography
Common Installation FAQs
Can I install a ground mount system on a slope?
Yes. YIJIA Solar’s adjustable leg kits accommodate slopes up to 30°, allowing level installation without excessive grading.
How long does a professional installation take?
A 10kW system typically takes 3–5 days with a 2-person crew, depending on terrain complexity.
Do I need special tools for a tracking system?
Basic tools suffice, but YIJIA’s tracking systems require a torque wrench for motor mounts and a multimeter for electrical checks.
Ready to Install Your Ground Mount Solar System?
Installing a ground mount solar system is a significant step toward energy independence, and YIJIA Solar’s components make the process seamless. Whether you’re a DIY enthusiast or a professional installer, their high-quality racking and tracking systems ensure long-term performance.
Contact YIJIA Solar today for a free installation guide and product quote. Visit https://www.yijiasolar.com/solar-mounting-system/ to explore their ground mount solutions or schedule a consultation with their engineering team.
Don’t let installation challenges hold you back—choose YIJIA Solar for reliable, easy-to-install systems that power your future.
