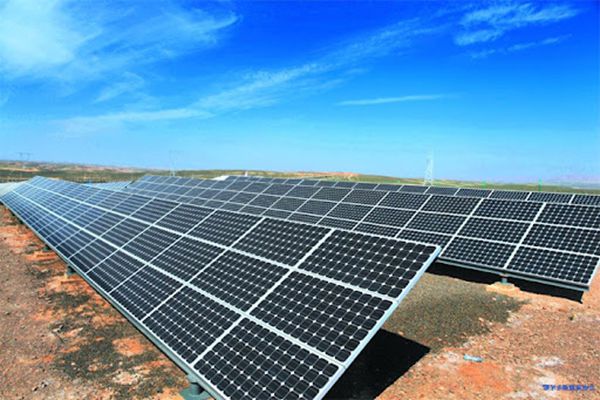

How to Install a Ground Mount Solar System: A Comprehensive Step-by-Step Guide

Installing a ground mount solar system offers property owners unmatched flexibility and energy yield, but the process requires careful planning and technical expertise. Whether for a residential, commercial, or utility-scale project, this step-by-step guide breaks down the installation journey—from site assessment to final commissioning—with a focus on optimizing efficiency using Yijia Solar’s innovative racking and tracking solutions.

Step 1: Pre-Installation Planning and Site Assessment

1.1 Define Your Energy Goals

· Calculate annual energy consumption to determine system size (e.g., a 10kW system offsets ~12,000 kWh/year for an average home).

· Yijia Solar’s free energy calculator helps size systems based on location and usage patterns.

1.2 Site Analysis Essentials

· Sunlight Exposure: Use PVWatts to ensure 6–8 hours of direct sunlight daily. Avoid north-facing slopes (Northern Hemisphere) and shaded areas.

· Soil Type:

· Sandy/loamy soil: Ideal for helical piles (install in 15 minutes/pile).

· Clay/rocky soil: Concrete footings may be necessary, increasing installation time by 60%.

· Yijia Solar Advantage: Free 3D site modeling to optimize panel placement and shade mitigation.

Step 2: Foundation Installation for Long-Term Stability

2.1 Helical Pile Foundations (Ideal for Most Soils)

Pile Selection:

· Yijia Solar’s galvanized steel helical piles (80μm zinc coating) support 2,000+ lbs and pass 1,000+ hours of salt spray testing.

. Installation Process:

· Use a hydraulic pile driver to screw piles into the ground until reaching load-bearing strata (typically 3–5 feet deep).

· Leveling brackets ensure precise height adjustment (±0.5°).

2.2 Concrete Footing Foundations (For Heavy-Duty Projects)

. Excavation: Dig 2–3 foot deep holes for footings, spaced according to racking design.

. Reinforcement and Pouring:

· Insert steel rebar cages, then pour concrete (minimum 3,000 psi strength).

· Cure for 7–10 days before installing racks.

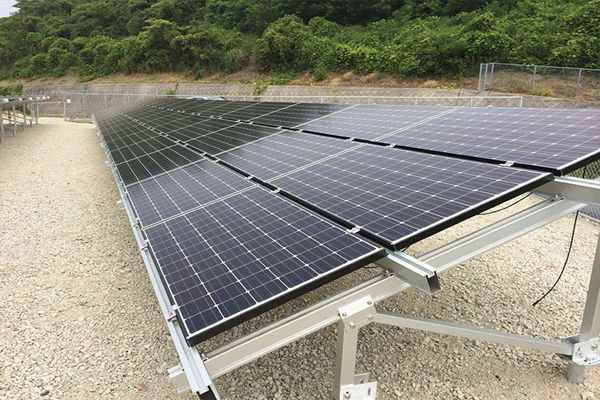

Step 3: Racking System Installation

3.1 Galvanized Steel vs. Aluminum Racks

· Galvanized Steel:

· Q235 hot-dip galvanized steel racks withstand 140 mph winds and 60 psf snow loads, ideal for utility-scale projects.

· Aluminum Racks:

· 6005-T5 aluminum reduces weight by 30%, perfect for residential or commercial installations.

3.2 Yijia Solar’s SnapLock™ Racking Technology

1. Rail Installation:

· Lay main rails across foundations, securing with pre-punched holes and stainless steel fasteners.

· Yijia Solar’s SnapLock™ rails reduce installation time by 40% with self-aligning connectors.

1. Crossbar Placement:

· Attach crossbars at 1–1.5m intervals to support panel weight evenly.

Step 4: Solar Panel Installation and Wiring

4.1 Panel Mounting Best Practices

. Panel Alignment:

· Position panels with 20–40° tilt (Northern Hemisphere) for maximum sunlight capture.

· Yijia Solar’s adjustable tilt brackets enable seasonal angle adjustments (e.g., 30° in summer, 40° in winter).

. Electrical Connections:

· Use MC4 connectors to link panels in series, routing cables through weatherproof conduit.

4.2 Tracking System Integration (Optional)

· Single-Axis Tracker Installation:

. Mount tracker motors on main rails, connecting to control units.

. Yijia Solar’s SmartTrack™ system features ±0.1° accuracy, increasing yield by 25%.

· Wiring Integration:

· Connect tracker motors to the inverter for synchronized operation.

Step 5: Inverter Setup and Grid Connection

5.1 Inverter Placement

· Install string or microinverters in a shaded, ventilated area (e.g., utility shed), within 50 feet of the array for minimal power loss.

5.2 Electrical Panel Upgrades

· Upgrade the main electrical panel to accommodate solar power, installing a bidirectional meter for net metering.

5.3 Permitting and Inspections

· Submit installation plans to local authorities for permits, scheduling inspections for:

· Foundation stability

· Electrical wiring compliance

· Wind/snow load calculations (Yijia Solar provides certified engineering reports).

Step 6: System Commissioning and Monitoring

6.1 Performance Testing

· Use a multimeter to verify DC voltage output, then power on the inverter to check AC conversion.

· Yijia Solar’s cloud-based monitoring platform enables real-time performance tracking.

6.2 Maintenance Planning

· Schedule annual inspections for:

· Loose fasteners or corroded components

· Tracker motor lubrication (if applicable)

· Panel cleaning (recommended 2–3 times/year in dusty areas).

Cost-Saving Installation Tips from Yijia Solar

1.Modular Design: Start with a 5kW system and expand later, leveraging Yijia Solar’s scalable racking.

2. Helical Piles: Save 30% on foundation costs vs. concrete footings, especially for sandy soil.

3. Bulk Pricing: Projects over 100kW qualify for discounted racks and panels.

Why Choose Yijia Solar for Installation

1. Technical Expertise

· 25+ Patents: Including the Single Column Support System (reduces material use by 25%) and SnapLock™ technology.

· Certified Installers: Trained crews with 10,000+ projects completed worldwide.

2. Comprehensive Services

· Turnkey Solutions: From design to O&M, with 24/7 technical support.

· Warranty Coverage: 15-year rack warranties and 25-year panel performance guarantees.

Take the Next Step with Yijia Solar

Ready to install your ground mount solar system? Yijia Solar’s experts offer:

· Free Site Assessment: Soil testing, 3D modeling, and cost projections.

· Custom Design Plans: Tailored to your terrain, energy goals, and budget.

· Financing Options: Leasing, PPAs, and tax credit assistance.

Contact Yijia Solar Today to schedule a consultation and receive a detailed installation quote. Maximize your solar investment with a partner who combines technical excellence with installation efficiency.
