Application of Frequency Converters in Photovoltaic Water Pump Systems

Global environmental pollution and energy shortages have compelled humanity to actively explore and develop new energy sources. Among various renewable alternatives such as wind, nuclear, hydro, and solar energy, photovoltaic (PV) power generation has emerged as a promising solution. Despite current practical limitations, PV power is gradually entering the commercial stage due to decreasing costs, increasing fossil fuel prices, and depleting mineral energy resources.

1. Basic Principles of Photovoltaic Power Generation

Solar cells primarily use monocrystalline silicon as the material, structured into a p-n junction similar to that in diodes. While diodes rely on external electric fields to drive hole-electron movement in the p-n junction, solar cells utilize solar photons and radiant heat, a phenomenon known as the photovoltaic effect. Current energy conversion efficiencies are approximately 13%-15% for monocrystalline silicon and 11%-13% for polycrystalline silicon. Emerging technologies include thin-film PV cells.

2. Classification of Solar Photovoltaic Systems

Solar PV systems are broadly categorized into three types: off-grid PV energy storage systems, grid-connected PV systems, and hybrid systems combining the two. Off-grid storage systems, a common application with years of history domestically and internationally, feature simple structures and wide adaptability. However, their use is restricted by the large size and maintenance challenges of traditional lead-acid batteries, which remain the standard due to the absence of specialized PV batteries in China.

3. Components of Solar Photovoltaic Systems

Solar PV Panels: These convert solar energy into electrical energy.

Batteries: Critical for storing electricity from PV panels, currently relying on conventional lead-acid batteries.

DC Inverters: Convert direct current (DC) to alternating current (AC), with reliability and conversion efficiency as key performance indicators, enabling power supply to the grid or electrical devices.

4. Introduction to Photovoltaic Water Pump Systems

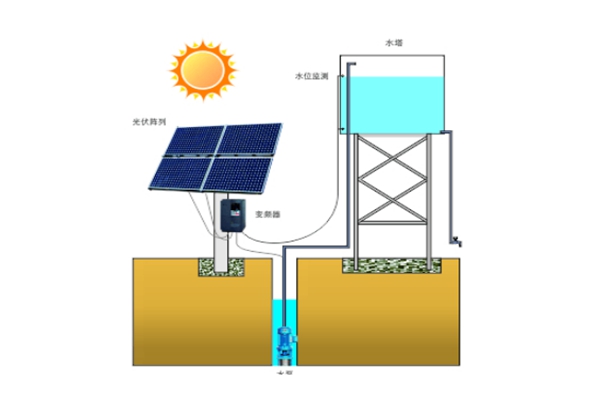

A typical opto-mechatronic system, PV water pumps use solar panels to generate DC electricity, which is converted to AC via an inverter to drive an asynchronous motor and pump water from wells, rivers, lakes, or ponds. Applications include desert control, residential water supply, agricultural irrigation, landscape watering, pastoral husbandry, fountain systems, and water treatment. Key features include:

Fully Automated Operation: Comprising PV panels, optional batteries, specialized PV frequency converters, pumps, and water storage devices, requiring no manual supervision.

Intelligent Speed Control: Specialized converters adjust pump speed based on sunlight intensity to track the maximum power point of solar arrays, limiting speed under strong sunlight and shutting down when light is insufficient.

Flexible Pump Selection: Three-phase AC motors drive various pump types depending on system requirements and installation conditions.

Customized Solutions: Tailored to regional and customer needs for cost-effective performance.

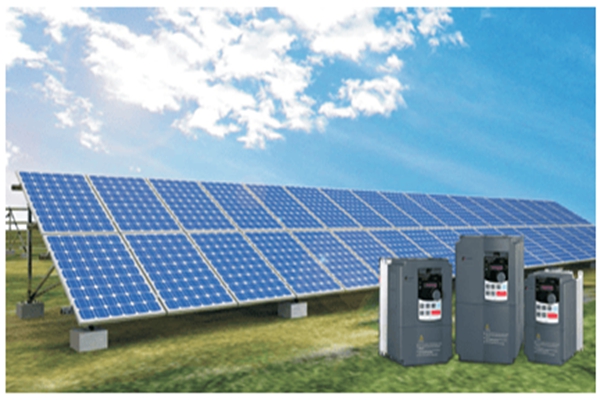

5. Features and Applications of HD800 Series Frequency Converters

Developed by Puchuan Technology after extensive field testing, the HD800 series has been widely adopted in dozens of countries near the equator in Asia, Africa, and South America, praised for its stable performance. Key features include:

Integrated MPPT System: High-precision Maximum Power Point Tracking for fast response, stability, and efficiency.

Dry Run Detection & Protection: Safeguards against pump damage in dry conditions.

Water Level Control: Manages reservoir levels for optimal water usage.

Grid Backup Function: Automatically switches to mains power under low light conditions via external devices, ensuring reliability.

Wide Voltage Range: Adaptable to harsh outdoor electrical environments.

Real-Time Monitoring: LED display and RS485-based remote monitoring for system status and parameters.

Easy Installation & Maintenance: Quick-deploy design with minimal upkeep requirements.

Comprehensive Protection: Built-in diagnostic and protective mechanisms against faults.

System Configuration

Main Circuit Wiring: Illustrated for 7.5kW and lower models, ensuring safe electrical connections.

PV Panel Selection: Guidance on matching solar arrays to converter specifications for optimal performance.

Field Application in Egypt

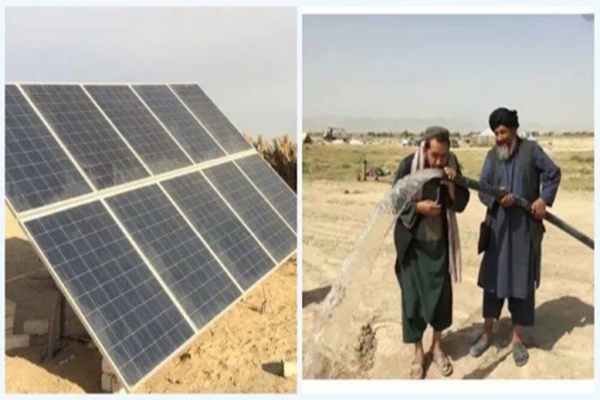

Facing severe water shortages and energy constraints in agriculture, Egypt leverages its abundant solar resources for PV irrigation. The HD800 series, introduced by Beijing Yijia, has operated reliably, achieving a 70% cost reduction for users within one year, demonstrating its effectiveness in arid environments.

6. Advantages of Photovoltaic Power Generation

Clean Energy: Emission-free operation (with proper disposal of end-of-life batteries).

Safety: Stable performance with low risk of electrical hazards.

Wide Applicability: Usable in diverse geographical and climatic conditions.

Longevity & Low Maintenance: Durable components with minimal upkeep requirements.

Resource Abundance & Cost Potential: Vast solar resources and decreasing long-term costs.

7. Limitations of Photovoltaic Power Generation

Time Dependency: Production varies with daylight hours and seasons.

Geographical Restrictions: Efficiency affected by latitude and terrain.

Weather Sensitivity: Reduced output in cloudy, rainy, or dusty conditions.

Capacity Limits: Challenges in large-scale power transmission and storage.

Conversion Efficiency: Current rates remain lower than fossil fuel alternatives.

8. Key Factors Influencing PV Water Pump Performance

PV Panel Voltage & Capacity: Directly impact power output and system scalability.

Light Intensity: Determines instantaneous power generation capacity.

Panel Cleanliness: Dust and debris reduce energy conversion efficiency.

Ambient Temperature: Affects cell performance, with optimal efficiency in moderate temperatures.

9. Conclusion

PV water pump systems harness renewable solar energy, operating autonomously without fossil fuels or constant supervision. They integrate seamlessly with grids or function independently, providing reliable water solutions for agriculture, livestock, landscaping, and industrial use. Benefits include long lifespan, low power consumption, quiet operation, stable speed control, and minimal interference, addressing irrigation challenges while reducing reliance on traditional energy sources.

As a sustainable to fossil fuels, PV water pump systems represent a critical innovation in solving global food and energy security issues, embodying the potential of clean technology to drive ecological and economic progress.
