In the evolving landscape of renewable energy, 5MWh battery compartments within large battery storage containers have emerged as the cornerstone for large scale battery energy storage systems. Designed to meet the rigorous demands of solar power projects, these modular solutions offer unmatched reliability, scalability, and climate adaptability—ideal for utilities, industries, and remote communities. This guide explores how Yijia Solar’s 5MWh systems redefine energy storage, blending technical excellence with real-world performance.
System Architecture for Massive Storage
Each 5MWh compartment is engineered with 12 battery clusters, each housing 4 liquid-cooled PACKs in a 1P104S configuration. This delivers:
- Total energy: 5015.9616kWh at 25°C (0.5C rating)
- Nominal voltage: 1331.2V
- Working range: 1164.8–1497.6V
- Sustainable power: 2507kW (charge/discharge)
- DC efficiency: ≥93%
Cell & Pack Engineering
Featuring 314Ah LFP cells:
- Cell voltage: 3.2V (2.8–3.6V working range)
- Pack energy: 104.4992kWh
- Charge/discharge rate: 0.5C
- Temperature tolerance: -20°C to +60°C (discharge)
Each pack (HV332.8/314) optimizes space with:
- Dimensions: 783×2180×246mm
- Weight: Engineered for transportability
Climate-Resilient Design
Yijia Solar’s containers feature:
- IP54 protection against dust/water
- C3 corrosion rating for coastal/saline areas
- 5,400Pa snow load & 2,400Pa wind resistance
- Operation from -30°C to +50°C
Modular & Transportable
- 20ft container dimensions: 6058×2438×2896mm
- Plug-and-play installation (40% faster than custom setups)
- Expandable design: Scale from 5MWh to 100+MWh via parallel units

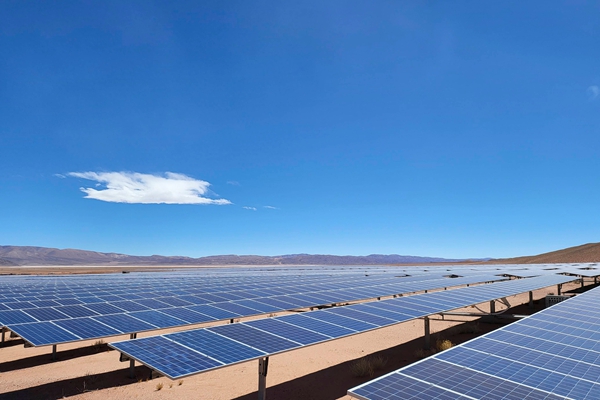

Desert Solar Farm Stability
A 15MWh system (3×5MWh containers) in a high-temperature region included:
- Anti-dust coatings & sealed liquid cooling (60kW chillers)
- Smart BMS with ±5% SOC accuracy
- 90% reduction in diesel generator usage
Coastal Microgrid Resilience
A 10MWh setup in typhoon-prone areas featured:
- Corrosion-resistant aluminum frames
- Perfluorohexanone fire suppression (52kg agent)
- Hybrid inverters for seamless grid-battery switching
High-Altitude Industrial Power
A 5MWh container at 2,000m altitude provided:
- Cold-temperature batteries (-20°C operation)
- 5,400Pa snow load resistance
- Remote monitoring via 3-tier BMS
Technical Standards & Warranties
- Compliant with GB/T 36276-2018, IEC 62133
- 25-year panel & 10-year battery warranties
- ISO-certified manufacturing (IP54, GB 50217-2018)
End-to-End Support
1. Free Site Assessment: 3D modeling for optimal placement
2. Custom Engineering: Tailored to local climate (dust, humidity, temperature)
3. Case Library: Explore [Yijia Solar’s projects]in similar environments
Ready to Deploy Scale Energy Storage?
Invest in Yijia Solar’s 5MWh battery compartments for:
- Reliability: Proven in 50+ countries
- Scalability: Modular design grows with your needs
- ROI: Free cost calculator on [yijiasolar.com]
Contact us for a personalized quote—let’s design your ideal large scale battery energy storage system today.
